REGULATOR
PRIMARY CO2
Quadruple safety design.
Professional
adjustment lever
Automatic pressure
relief design
Vent hole back design
Pressure limit 400 kg

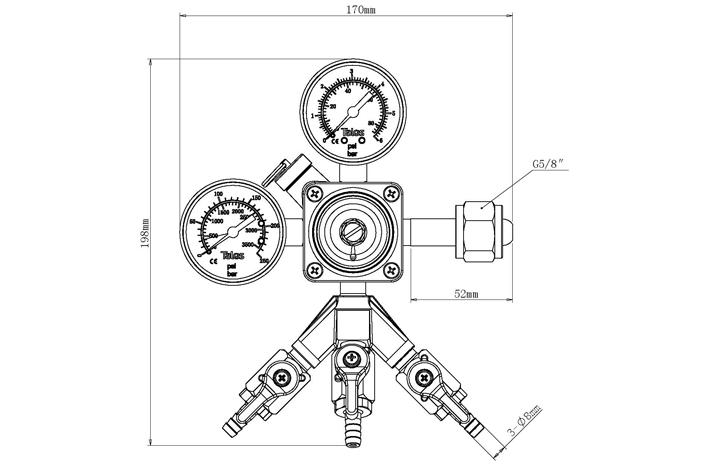

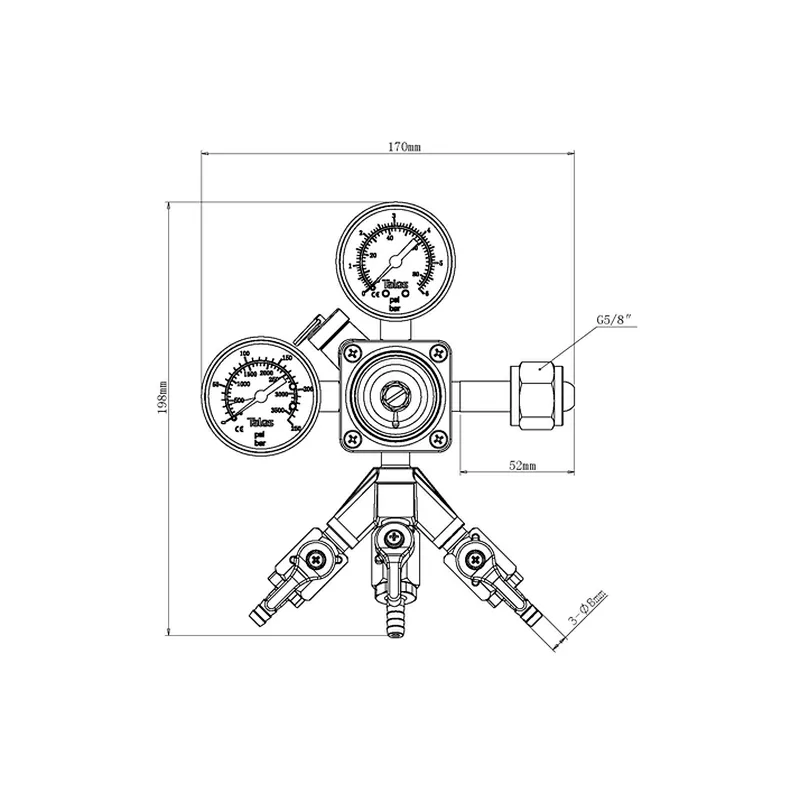

Detail drawing of
pressure reducing valve
Pressure relief valve
High voltage
meter
Pressure
regulating screw
Low pressure gauge
Inlet connection
Small ball
valve switch
8mm interface
Product parameters
| Part No. | Shank | Shutoffs | Inlet Pressure Range | Outlet Pressure Range | Safety Releases at 70-80 PSI | Gas Barb | N.W Unit (kg) | Unit Dimension | G.W Unit (kg) | Pcs/ Ctn | Box Dimension | G.W/Box (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1077173 | G5/8 | 3-Way | 0-1500 PSI | 0~70 PSI | 70~86 PSI | ф8 | 1.37 | 23cm L x23cm W x12.5cm H | 1.67 | 12 | 47.5cm L x47.5cm W x39cm H | 20.92 |
| 1077174 | CGA320 | 3-Way | 0-1500 PSI | 0~70 PSI | 70~86 PSI | ф8 | 1.40 | 23cm L x23cm W x12.5cm H | 1.70 | 12 | 47.5cm L x47.5cm W x39cm H | 21.30 |
| 1077176 | W21.8 | 3-Way | 0-1500 PSI | 0~70 PSI | 70~86 PSI | ф8 | 1.41 | 23cm L x23cm W x12.5cm H | 1.71 | 12 | 47.5cm L x47.5cm W x39cm H | 21.42 |
| 1077175 | G3/4 | 3-Way | 0-1500 PSI | 0~70 PSI | 70~86 PSI | ф8 | 1.42 | 23cm L x23cm W x12.5cm H | 1.73 | 12 | 47.5cm L x47.5cm W x39cm H | 21.58 |
A variety of connectors
to choose from
G5/8 interface
CGA320 connector
W21.8 Joint
G3/4 connector

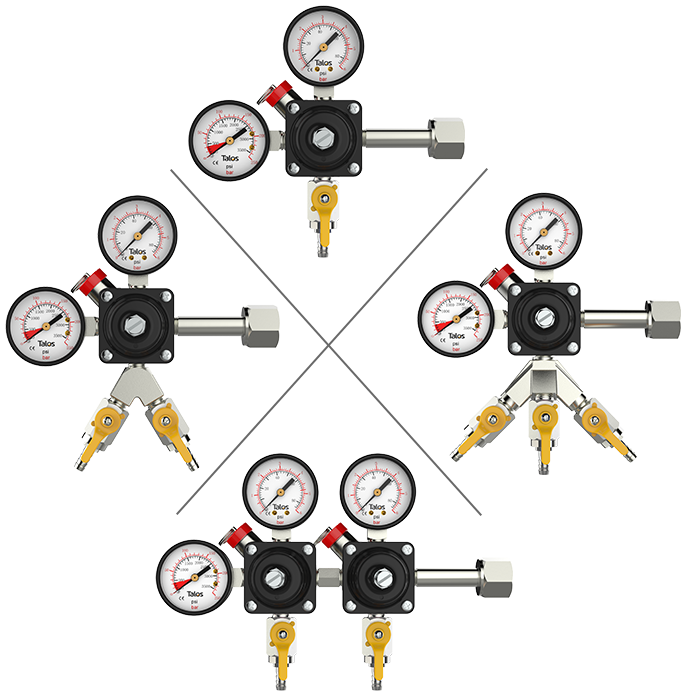

Model display
