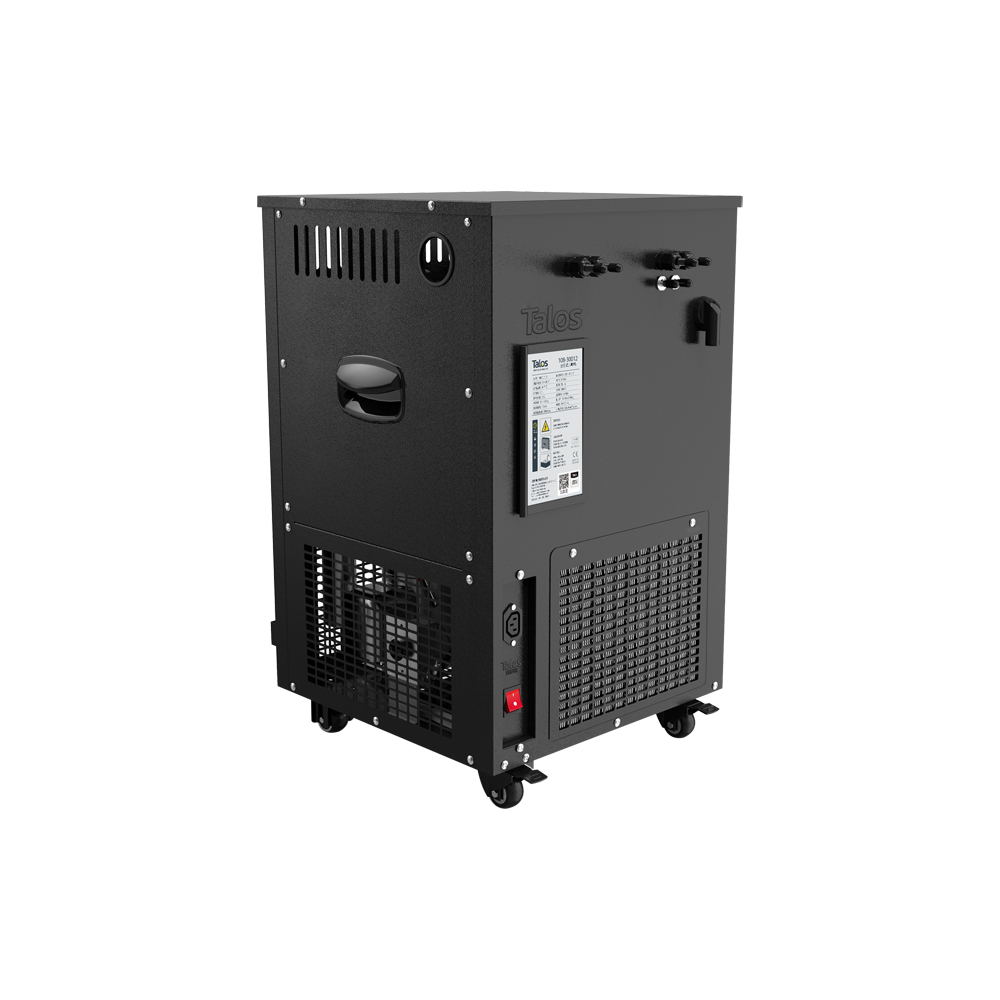

70L Enhanced Water Cooled Beer Cooler

Quantity:

ENHANCED BEER COOLER

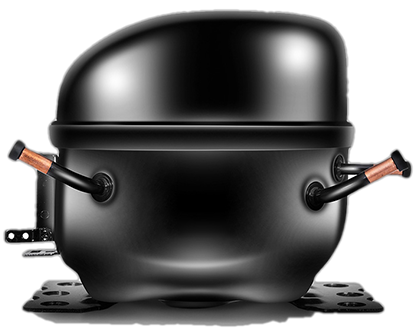

BRAND COMPRESSOR

Use low-noise, low-vibration electric air pump,

keep the beer fresh at a long time,

intermittently tapping,drinking the first galss as usual.

Low-noise

Quick cooling

Exclusive

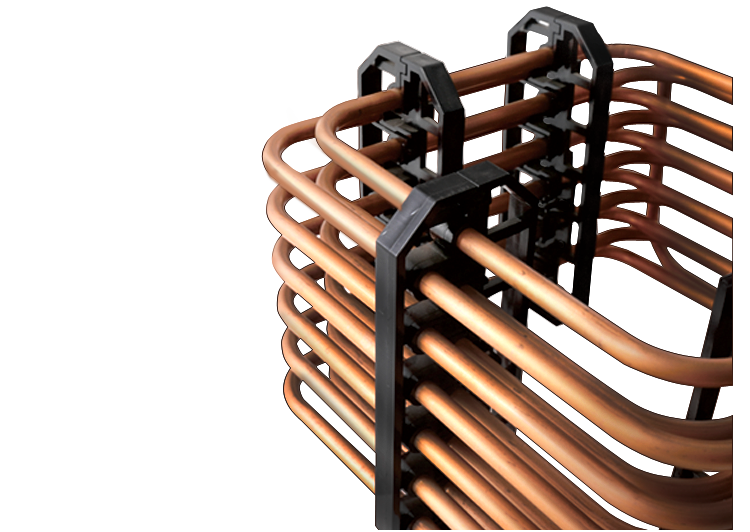

DOUBLE

REFRIGERATION TUBE

Copper refrigeration tube,which improves the cooling speed,

promotes the stable and efficent operation of the beer machine,

and guarantees more alcohol consumption

BIG WATER TANK&ICE BANK

55L water tank,21kg ice tank,100L maximun continuous

cooling capacity

*product ai 3~7℃,keg at 25℃

Streamlined design

is more three-dimensional

PRODUCT PARAMETER

Part No.	1083093	1084093	1085593	1087093	1089893
Volts(V)	220~240	220~240	220~240	220~240	220~240
Frequency(Hz)	50	50	50	50	50
Power(W)	340;360	400;420	450	430;450	580
Current(A)	2.8;3.39	2.9;3.5	3.5	3.1;3.3	4.0
Compressor(Hp)	1/3	1/3	1/2;1/3	1/2;1/3	3/4
Refrigerant	R134a/230g	R134a/230g	R134a/290g	R134a/320;360g	R404a/500g
Capacity(L)	30	40	55	70	100
Beer Coil	2,4	2,3,4	4,6,8	4,6,8	4,6,8,10
Cooling System	Water Cooling	Water Cooling	Water Cooling	Water Cooling	Water Cooling
Thermostat	Mechanical	Mechanical	Mechanical	Mechanical	Mechanical
Surface	Black	Black	Black	Black	Black
Cooling Capacity(L)	90	100	180	300	320
Outlet Temperature(℃)	3~7	3~7	3~7	3~7	3~7
Unit Dimensions	46cm Lx52cm W x67cm H	46cm Lx52cm W x72cm H	52cm Lx54cm W x78cm H	56cm Lx58cm W x83cm H	59cm Lx68cm W x94cm H
N.w Unit(Kg)	35.00	38.00	49.00	56.00	83.00
Box Dimensions	43.5cm Lx47.5cm W x68cm H	45cm Lx48cm W x74cm H	51.5cm Lx58cm W x80cm H	54.5cm Lx54.5cm W x84cm H	57.5cm Lx68cm W x93cm H
G.w Unit(Kg)	38.20	41.20	52.30	59.40	86.50
