Multiple protection treatment, no
scratching, no hand injury, safer use
With pressure relief
Optional, stainless
steel /nickel plated
Design of small boss
of intake nozzle
Design of Anti-backflow
R Angle on Wine Inlet of Probe
- Zero foam, no backflow
- No overflow when changing the barrel
- Use food grade lubricants
D-shaped
bottom
Streamlined
handle
Backflow
prevention device
| Part No. | Probe Material | Body Material | Handle | Surface | Pressure Relief | Gas Port O.D. | N.W Unit (kg) | Unit Dimension | G.W/Unit Un (kg) | Pcs/ Ctn | Box Dimension | G.W/Box (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1022601 | 304 S.S | Brass | 304 S.S | Tin-nickel Plated | / | ф8mm | 0.61 | 17.5cm L x10cm W x6cm H | 0.68 | 40 | 41.5cm L x36.5cm W x32cm H | 27.86 |
| 1022618 | 304 S.S | 304 S.S | 304 S.S | S.S | / | ф8mm | 0.61 | 17.5cm L x10cm W x6cm H | 0.68 | 40 | 41.5cm L x36.5cm W x32cm H | 27.86 |
| 1022701 | 304 S.S | Brass | 304 S.S | Tin-nickel Plated | 46~55 PSI | ф10mm | 0.61 | 17.5cm L x10cm W x6cm H | 0.68 | 40 | 41.5cm L x36.5cm W x32cm H | 27.86 |
| 1022718 | 304 S.S | 304 S.S | 304 S.S | S.S | 46-55 PSI | ф10mm | 0.61 | 17.5cm L x10cm W x6cm H | 0.68 | 40 | 41.5cm L x36.5cm W x32cm H | 27.86 |
| 1022709 | Brass | Brass | Brass | Tin-nickel Plated | 46-55 PSI | ф10mm | 0.51 | 17.5cm L x10cm W x6cm H | 0.58 | 40 | 41.5cm L x36.5cm W x32cm H | 23.86 |
| 1022704 | 304 S.S | Brass | Brass | S.S | 46-55 PSI | ф10mm | 0.51 | 17.5cm L x10cm W x6cm H | 0.58 | 40 | 41.5cm L x36.5cm W x32cm H | 23.86 |
| 1022720 | 304 S.S | 304 S.S | 304 S.S | S.S | 46-55 PSI | ф10mm | 0.51 | 17.5cm L x10cm W x6cm H | 0.58 | 40 | 41.5cm L x36.5cm W x32cm H | 23.86 |
| 1022719 | Brass | Brass | Brass | Tin-nickel Plated | 46-55 PSI | ф10mm | 0.51 | 15cm L x13.2cm W x6.2cm H | 0.59 | 20 | 33.5cm L x31.5cm W x28cm H | 12.31 |
D-type Coupler Fits
Keg Spear and Models

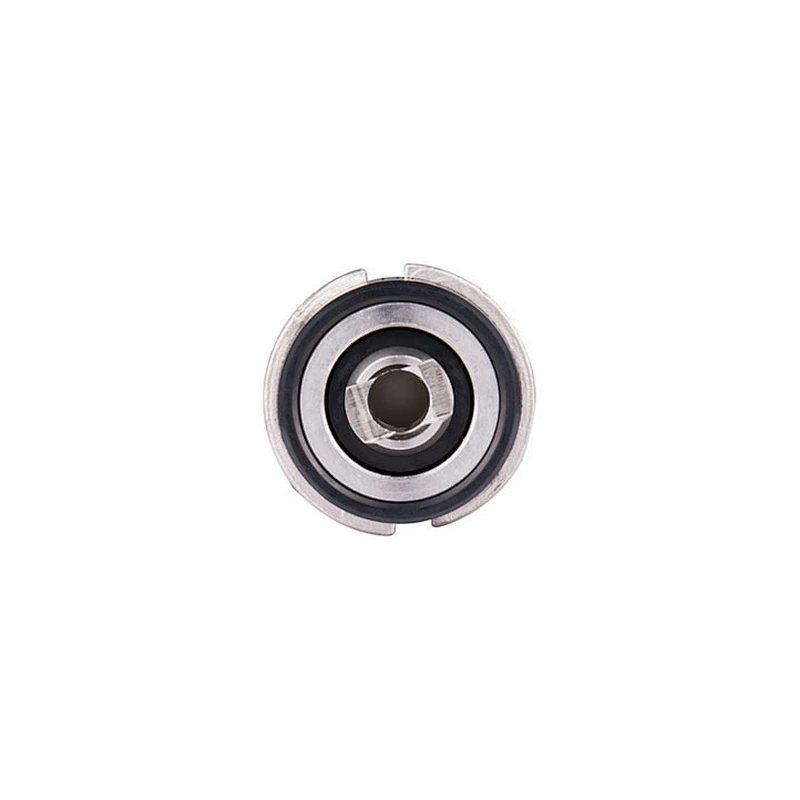

Bottom of
D-type Coupler
D-type Keg
spear interface
