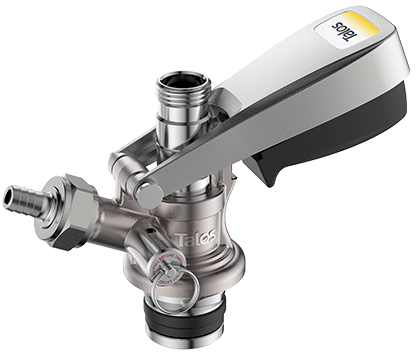

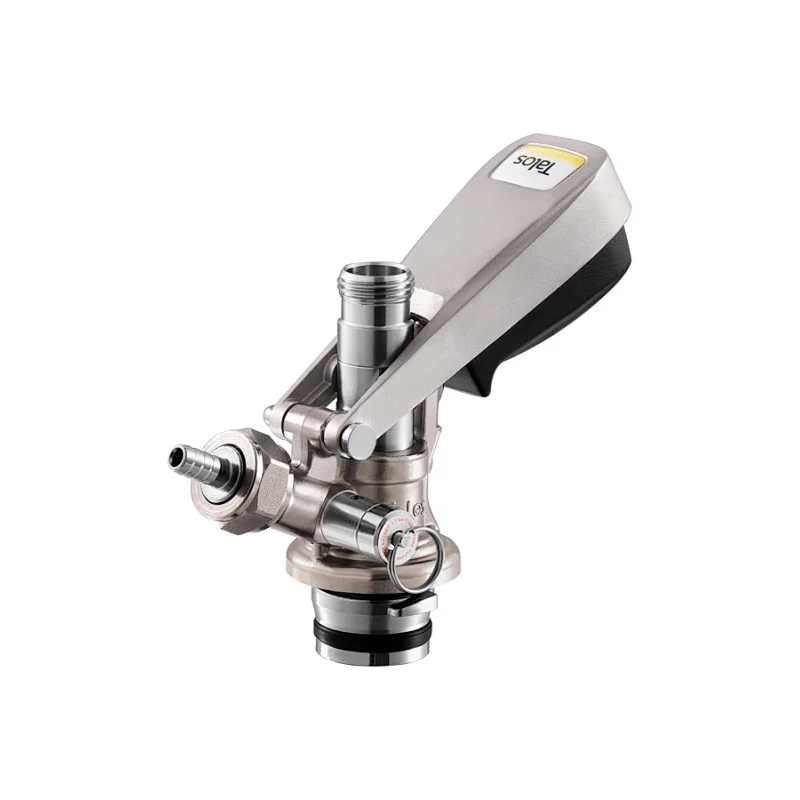

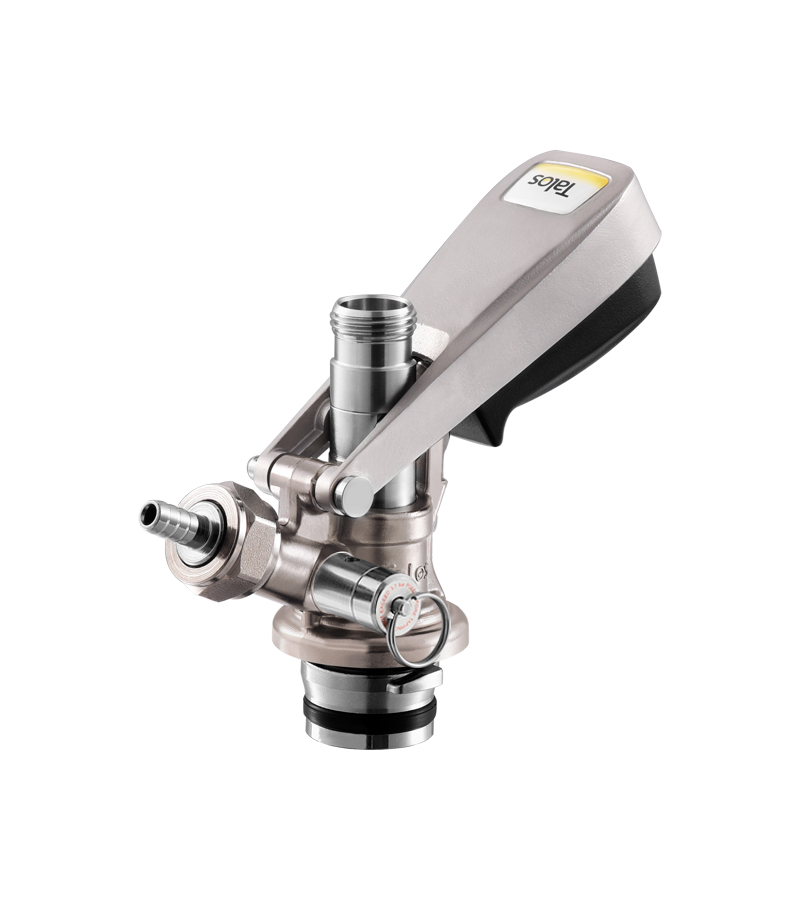

U-TYPE COUPLER
Multiple protection treatment, no
scratching, no hand injury, safer use
With pressure relief
Optional, stainless
steel /nickel plated
Design of small boss
of intake nozzle
Design of Anti-backflow
R Angle on Wine Inlet of Probe
- Zero foam, no backflow
- No overflow when changing the keg
- Use food grade lubricants
Intake nozzle
U-shaped
bottom
Streamlined
handle
Backflow
prevention device

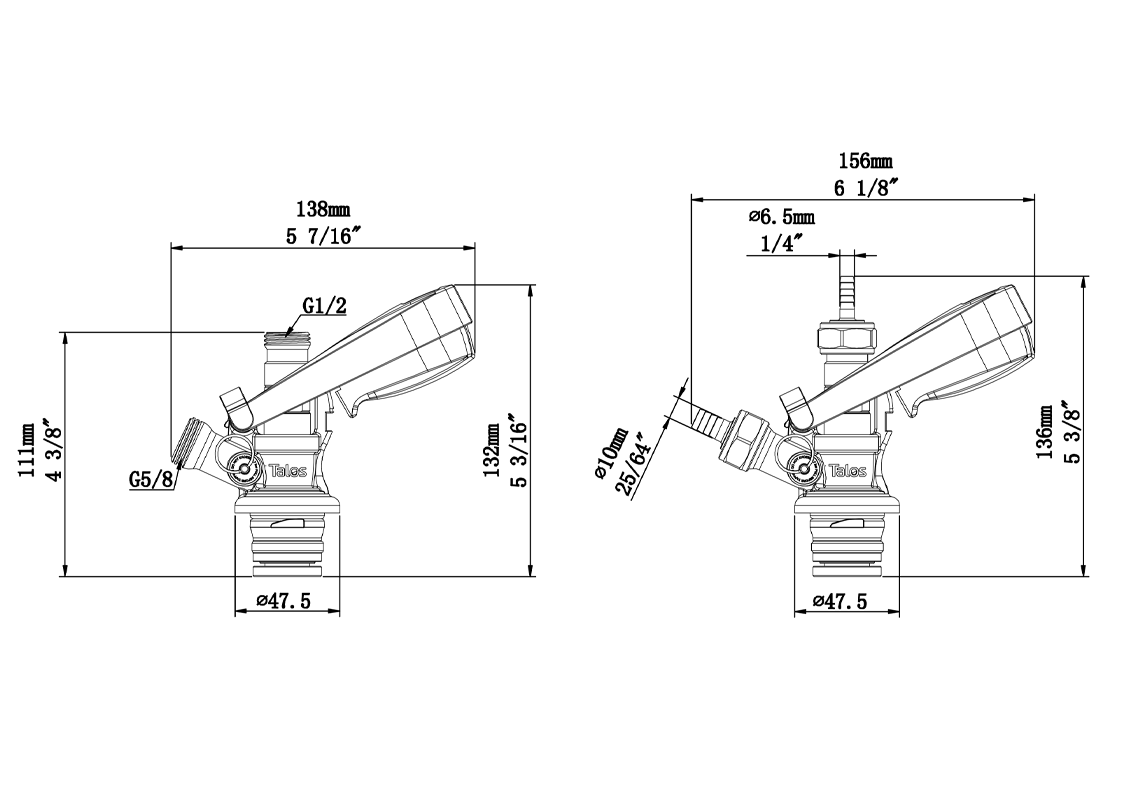

Product parameters
SPECIFICATIONS
| Part No. | Probe Material | Body Material | Handle | Surface | Pressure Relief | Gas Port O.D. | N.W Unit (kg) | Unit Dimension | G.W/Unit (kg) | Pcs/ Ctn | Box Dimension | G.W/Box (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1026601 | 304 S.S | Brass | 304 S.S | Tin-nickel Plated | / | ф8mm | 0.78 | 16.8cm L x8.5cm W x12cm H | 0.87 | 20 | 44cm L x35cm W x26cm H | 18.00 |
| 1026701 | 304 S.S | Brass | 304 S.S | Tin-nickel Plated | 46~55 PSI | ф10mm | 0.78 | 16.8cm L x8.5cm W x12cm H | 0.87 | 20 | 44cm L x35cm W x26cm H | 18.00 |
U-type Coupler Fits
Keg Spear and Models
U-type Coupler

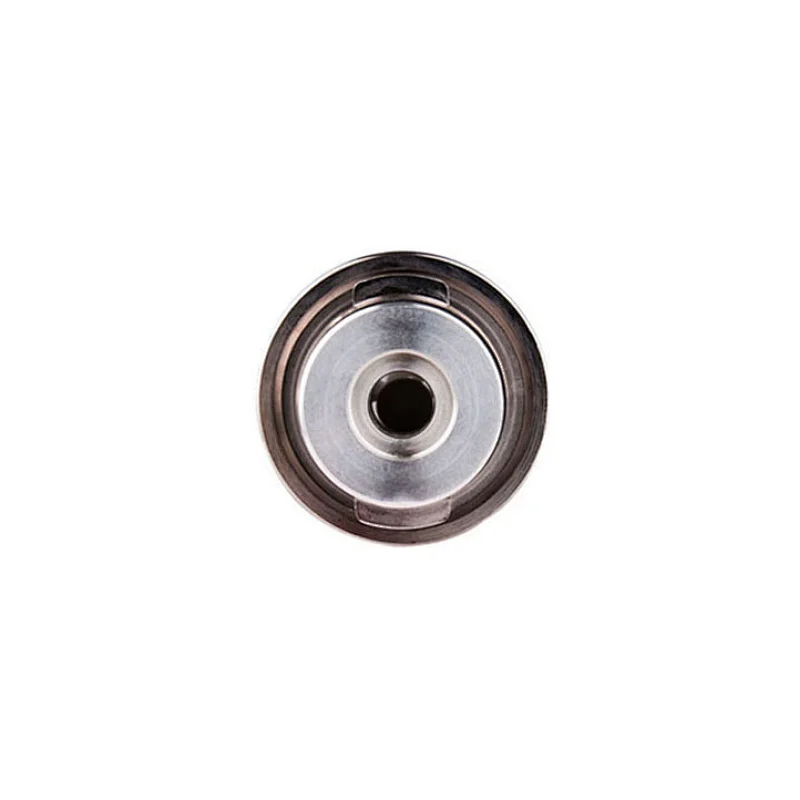

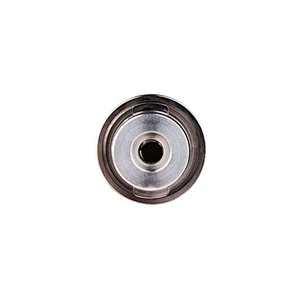

Bottom of
U-type Coupler
U-type Keg
spear interface
Dispenser style display
