Model NO.
1077107
Delivery:
FOB
Minimum order quantity:
20 sets
Supply Ability:
500 sets / Month
Country of Origin:
Ningbo or Shanghai Port
Quantity:

REGULATOR

PRIMARY CO2

Quadruple safety design.
  • Professional

    adjustment lever

  • Automatic pressure

    relief design

  • Vent hole back design

  • Pressure limit 400 kg

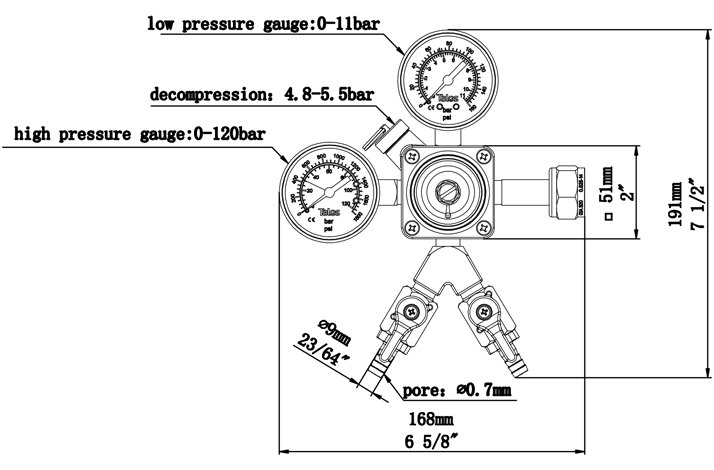

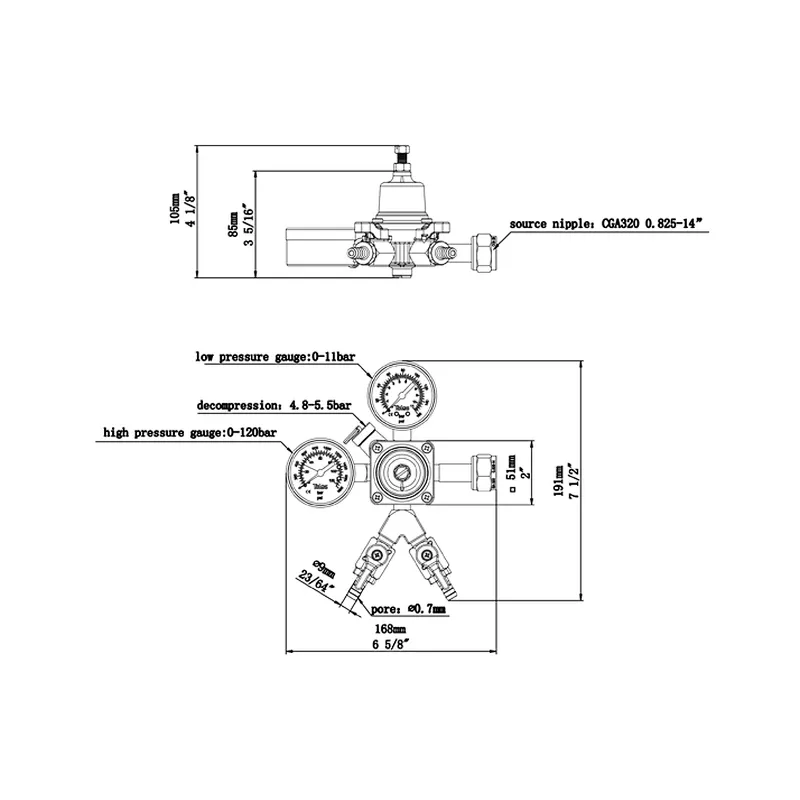

Detail drawing of

pressure reducing valve



Pressure relief valve



High voltage

meter

Pressure

regulating screw



Low pressure gauge

Inlet connection


Small ball

valve switch

8mm interface
Product parameters
Part No.ShankShutoffs

Inlet

Pressure

Range

Outlet

Pressure

Range

Safety

Releases

at 70-80 PSI

Gas

Barb

N.W Unit

(kg)

Unit

Dimension

G.W

Unit (kg)

Pcs/

Ctn

Box

Dimension

G.W/Box

(kg)

1077107G5/82-Way0-1500 PSI0~70 PSI70~86 PSIф81.50

23cm L

x23cm W

x12.5cm H

1.5012

47.5cm L

x47.5cm W

x39cm H

18.89
1077120CGA3202-Way0-1500 PSI0~70 PSI70~86 PSIф91.18

23cm L

x23cm W

x12.5cm H

1.4812

47.5cm L

x47.5cm W

x39cm H

18.59
1077111W21.82-Way0-1500 PSI0~70 PSI70~86 PSIф81.24

23cm L

x23cm W

x12.5cm H

1.5412

47.5cm L

x47.5cm W

x39cm H

19.34
1077105G3/42-Way0-1500 PSI0~70 PSI70~86 PSIф81.24

23cm L

x23cm W

x12.5cm H

1.5412

47.5cm L

x47.5cm W

x39cm H

19.40

A variety of connectors

to choose from

  • G5/8 interface

  • CGA320 connector

  • W21.8 Joint

  • G3/4 connector
