Model NO.
1077130
Delivery:
FOB
Minimum order quantity:
50 pieces
Supply Ability:
500 pieces / Month
Country of Origin:
Ningbo/Shanghai Port
Quantity:

REGULATOR

PRIMARY CO2

Quadruple safety design.
  • Professional

    adjustment lever

  • Automatic pressure

    relief design

  • Vent hole back design

  • Pressure limit 400 kg

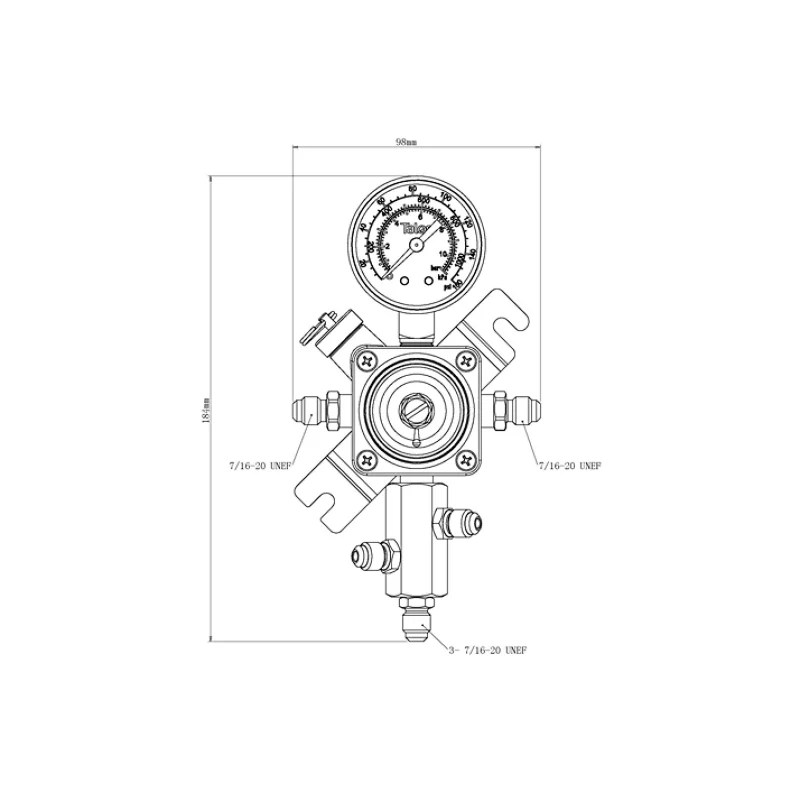

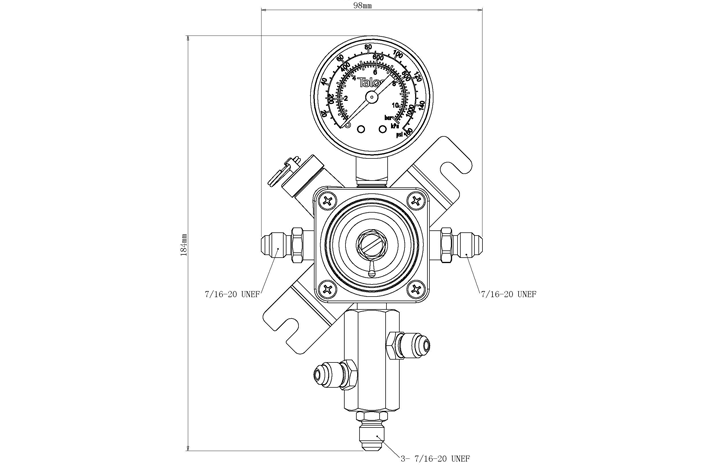

Detail drawing of

pressure reducing valve


Pressure relief valve

Pressure

regulating screw


Low pressure gauge

Inlet connection

7/16-20

UNF interface

Product parameters
Part No.ShankShutoffs

Inlet

Pressure

Range

Outlet

Pressure

Range

Safety

Releases

at 70-80 PSI

Gas

Barb

N.W Unit

(kg)

Unit

Dimension

G.W

Unit (kg)

Pcs/

Ctn

Box

Dimension

G.W/Box

(kg)

1077127CGA3201-Way0-1500 PSI0~70 PSI70~86 PSI7/16-20 UNF1.47/td>

23cm L

x23cm W

x12.5cm H

1.6612

47.5cm L

x47.5cm W

x39cm H

20.93
1077162CGA3201-Way0-1500 PSI0~130 PSI130~140 PSI7/16-20 UNF1.36

23cm L

x23cm W

x12.5cm H

1.6612

47.5cm L

x47.5cm W

x39cm H

20.80
1077130/3-Way0-130 PSI0~130 PSI130~140 PSI7/16-20 UNF1.07

23cm L

x23cm W

x12.5cm H

1.3712

47.5cm L

x47.5cm W

x39cm H

17.34
1077129/5-Way0-130 PSI0~130 PSI130~140 PSI7/16-20 UNF1.16

23cm L

x23cm W

x12.5cm H

1.4612

47.5cm L

x47.5cm W

x39cm H

18.39
Model display
