REGULATOR
PRIMARY CO2
Quadruple safety design.
Professional
adjustment lever
Automatic pressure
relief design
Vent hole back design
Pressure limit 400 kg

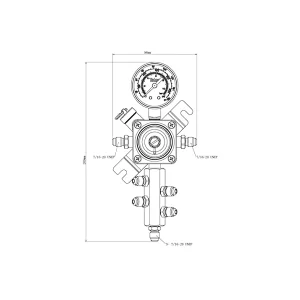

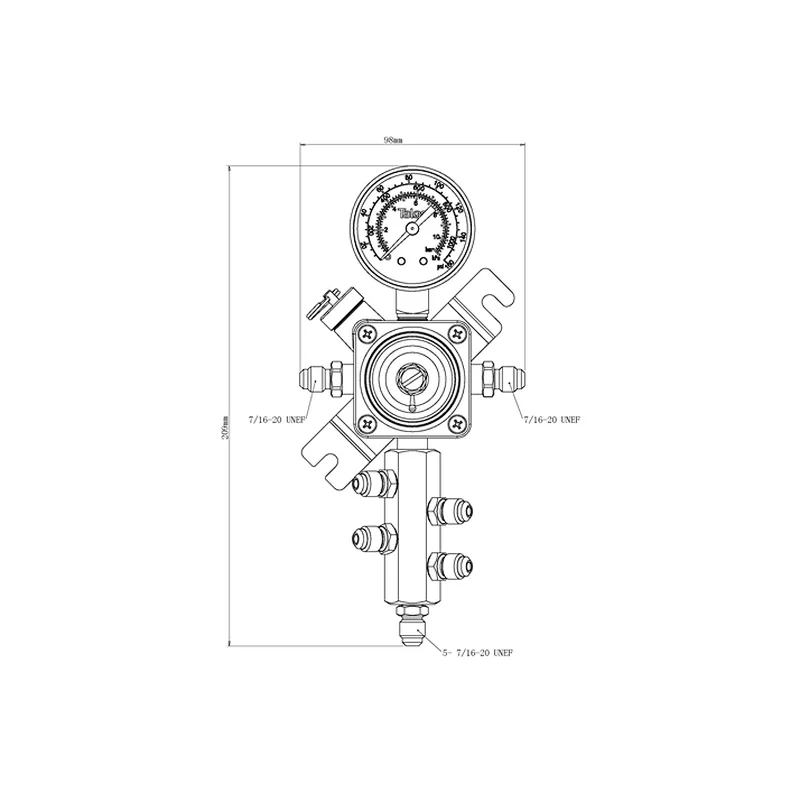

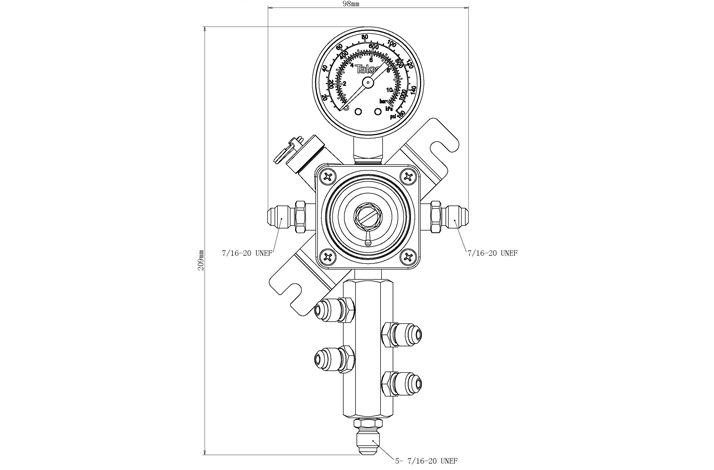

Detail drawing of
pressure reducing valve
Pressure relief valve
Pressure
regulating screw
Low pressure gauge
Inlet connection
7/16-20
UNF interface
Product parameters
| Part No. | Shank | Shutoffs | Inlet Pressure Range | Outlet Pressure Range | Safety Releases at 70-80 PSI | Gas Barb | N.W Unit (kg) | Unit Dimension | G.W Unit (kg) | Pcs/ Ctn | Box Dimension | G.W/Box (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1077127 | CGA320 | 1-Way | 0-1500 PSI | 0~70 PSI | 70~86 PSI | 7/16-20 UNF | 1.47/td> | 23cm L x23cm W x12.5cm H | 1.66 | 12 | 47.5cm L x47.5cm W x39cm H | 20.93 |
| 1077162 | CGA320 | 1-Way | 0-1500 PSI | 0~130 PSI | 130~140 PSI | 7/16-20 UNF | 1.36 | 23cm L x23cm W x12.5cm H | 1.66 | 12 | 47.5cm L x47.5cm W x39cm H | 20.80 |
| 1077130 | / | 3-Way | 0-130 PSI | 0~130 PSI | 130~140 PSI | 7/16-20 UNF | 1.07 | 23cm L x23cm W x12.5cm H | 1.37 | 12 | 47.5cm L x47.5cm W x39cm H | 17.34 |
| 1077129 | / | 5-Way | 0-130 PSI | 0~130 PSI | 130~140 PSI | 7/16-20 UNF | 1.16 | 23cm L x23cm W x12.5cm H | 1.46 | 12 | 47.5cm L x47.5cm W x39cm H | 18.39 |

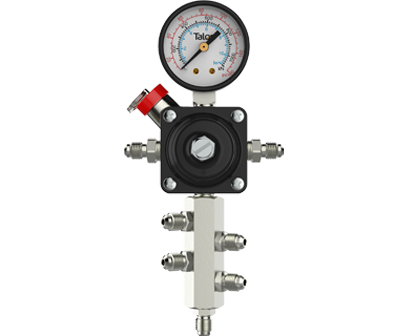

Model display
